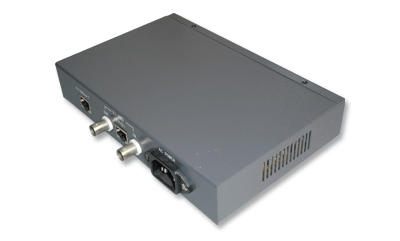

E1 to Ethernet Protocol Converter

E1 to Ethernet Protocol Converter pdf

E1 to Ethernet 10/100Base-T Protocol Converter adopts the ASIC chip which features simple circuits and compact structure and enhances the reliability of the integrated equipment. It provides data transmission channels at a maximum bandwidth of 2.048M for the Ethernet over coaxial cables and connects two LANs through coaxial cables. Thus two LANs can be connected to be two internet segments and use the same IP address via transmitting equipment such as multiplexer. The E1 Ethernet protocol converter is applicable to multiple application scenarios including LAN extension, network isolation, and access of LAN into WAN. As the expander and sector based on bit flow constructer, it has two work statuses: flirting and no-flirting, traffic can be transferred on WAN or not these two statuses are decided by these two statuses. The maximal speed of filtrating and transfer can be 30,000frame/s, buffer can hold 256 frames, taking in and sending out volume is 1 frame.

E1 to Ethernet Protocol Converter Features
Supporting IEEE802.3Q VLAN frames and 1536 bytes jumbo frames
Supporting data transmission from 10/100M Ethernet to E1
Configurable Ethernet bandwidth, supporting a maximum rate of 2.048 Mbps
Supporting full-duplex PAUSE flow control function
Supporting address filtering function
RJ45 interface, supporting adaptive crossover and straight-through cabling
Supporting the reset of a remote system from a local system
Supporting audio alarm function, with the audio alarm system to be disabled by the user at any time
Supporting E1 line loopback function
Built-in switching power supply, overall power consumption < 3W; external 220V AC and -48V DC interface
Ethernet interface: 10/100M auto-negotiation, half/ full duplex auto negotiation, supporting VLAN.
Provides two kinds of loop-back: E1 self-loop at local end and E1 loop-back at remote end.
Ethernet MAC address table (capacity: 4096) can support local data frame filtering.
Provide three types of clock: primary/subsidiary/external

E1 to Ethernet protocol converter Parameters
E1 interface:
Complies with ITU-T G.703, G.704 and G.823.
Rate: 2.048 Mb/s
Code pattern: HDB3
Interface impedance: 75 Ohm unbalanced BNC interface and 120 Ohm balanced RJ45 interface
Permitted input frequency shift: 2.048MHz 100PPM
Jitter characteristics: G.823 recommendation

E1 to Ethernet protocol converter Ethernet Interface:
Compliances with IEEE802.3/IEEE802.3u standard, using standard RJ45 connector
Supporting wire-speed10Base-T/100Base-TX, full duplex/half-duplex adaptive mode
Supporting automatic crossover of twisted pairs
Bit error rate: <1/1000000000

E1 to Ethernet protocol converter Power supply:
Dual power supplies is available
AC 220V: 220V (AC) input, 175V~264V (AC) are allowed
DC -48V: -48V (DC) input, -40V~-60V (DC) are allowed
Power Consumption :< 5W
Operating temperature: 0~55 C
Store temperature: -40~70℃
Relative Humidity: 5%-90% non-condensing (at 25 degree)
Weight:1.08kg
Package Dimension: Internal Power Supply: 28.3cm*28cm*7.5 cm
